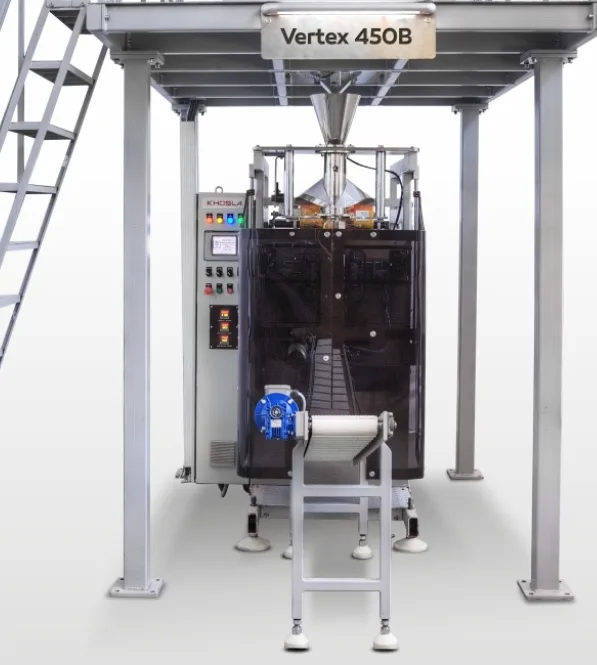

VERTEX 450B

VERTEX 450B

Product Details:

Frequency50 Hz
Model NumberVertex 550
Power SourceElectric
Automation GradeSemi Automatic
UsageIndustrial
Voltage220 V
Surface TreatmentPower Coated

Owing to our expertise, we are manufacturing and supplying superior quality Vertex 550 Rice Packing Machine.

Standard Features:-

1. Automatic, vertical form, fill and seal machine, designed for processing heat sealable laminates / LDPE/LLDPE films.
2. Rigid and ‘vibration-free’ framework made of high-grade materials with anti corrosion paint finish.
3. Machine housing with hygienically smooth and easy to clean surfaces.
4. Aesthetically designed guards with ‘interlock safety’.
5. Completely enclosed drive elements for protection from dust & safety of operator & high value parts.
6. Easy accessibility to the machine elements for servicing.
7. Machine base with height adjustable leveling pads.
8. Quick change -over of forming set
9. Packaging material pulled (intermittent) by friction surface of ‘timing belts’ made of natural rubber through a servo motor for precise cycle operation of the draw down. Belt pressure is pneumatically adjustable.
10. Horizontal Jaw drive is pneumatically operated.
11. Ease of operation. User friendly interface.
12. Setting and adjustment for bag length through operator interface.
13. Automatic film tracking control to ensure that the film is maintained at the center of the collar, thereby ensuring uniform vertical seal without silver lineing.
14. The speed of machine is 35 PPM to 60 PPM for 500 gm pack (depending on material characteristic.
15. Nominal speed of the machine (dry cycle)-90 cycle per minute.
16. High speed operation. Low laminate wastage.
17. Customize packaging solution for the industry.

Optional features
1. Enclosed ‘Dust Extraction system’ along with Motor
2. Change part for different bag sizes
3. Rod type spreader, mounted on the bottom of the forming tube to produce wrinkle free bags needed for each format size.
4. Ionising ring comb for removal of static charge
5. Gusseting Mechanism
6. Horizontal sealing jaw with servo drive available.
